Generador diesel del marco abierto

Hot Sale Diesel Power Generator Two Wheels Trailer Diesel Engine Generator Set Mini Diesel Generator

Todas Las Categorías

Generador diesel del marco abierto

Sistema de la bomba de agua

Éntrenos en contacto con

Mr. Jason Jiang

power01@sanrock.com.cn

0086 17357052522

Contacta ahora

Hot Sale Diesel Power Generator Two Wheels Trailer Diesel Engine Generator Set Mini Diesel Generator

Nombre De La Marca:	SANROCK POWER
Número De Modelo:	SPDG20KW
Cuota De Producción:	1 juego
Precio:	Chat with supplier now for more details.
Detalles Del Embalaje:	Paquete desnudo para máquinas, paquete de caja de madera para repuestos o demanda de clientes.
Condiciones De Pago:	MoneyGram, Western Union, T/T, D/P, D/A, L/C

Información detallada

Descripción del producto

Información detallada

Lugar de origen:

Zhejiang, China

Certificación:

CE;ISO

Document:

Nombre del producto:

Conjunto de generadores de tipo abierto / conjunto de generadores de tipo abierto

Frecuencia:

50Hz/60Hz

Voltaje:

48 V, 110 V, 220 V, 230 V, 240 V, 380 V, 400 V, 415 V, 480 V

Cilindro:

3/4/6/12-Según potencia

Número de cilindro:

3,4,6,8,12 cilindros

Número de fase y conexión:

Sistema de tres fases y cuatro alambres

Sistema de enfriamiento:

Refrigeración por agua

Dimensión del sistema (milímetros):

1485*700*1000mm~7300*2440*2800mm

Peso neto del sistema (kilogramos):

Especificado

Potencia nominal (KW/1500RPM):

5-2250kva

Velocidad:

1500/1800rpm

Tipo:

Tipo de remolque, tipo silencioso, tipo de contenedor, tipo súper silencioso, marco abierto, tipo po

Potencia nominal:

20 KW, 30 KW, 40 KW, 50 KW, 80 KW, 100 KW, 200 KW, 300 KW, 800 KW, 1000 KW, 1200 KW, 1500 KW, 1800 K

Solicitud:

Fábrica, edificio, granja, banco, etc.

Unidades comunes, unidad de espera

Ataque:

Movimiento cuatro

Logística:

Transporte de maquinaria completa o transporte desmontado; Transporte marítimo o ferroviario

Capacidad de la fuente:

100000set/mes

Resaltar:

two wheels trailer diesel generator

mini diesel generator set

open frame diesel generator with warranty

Descripción del producto

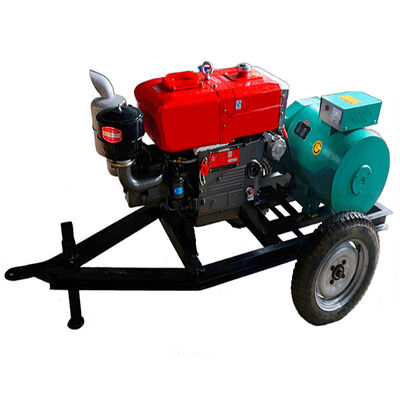

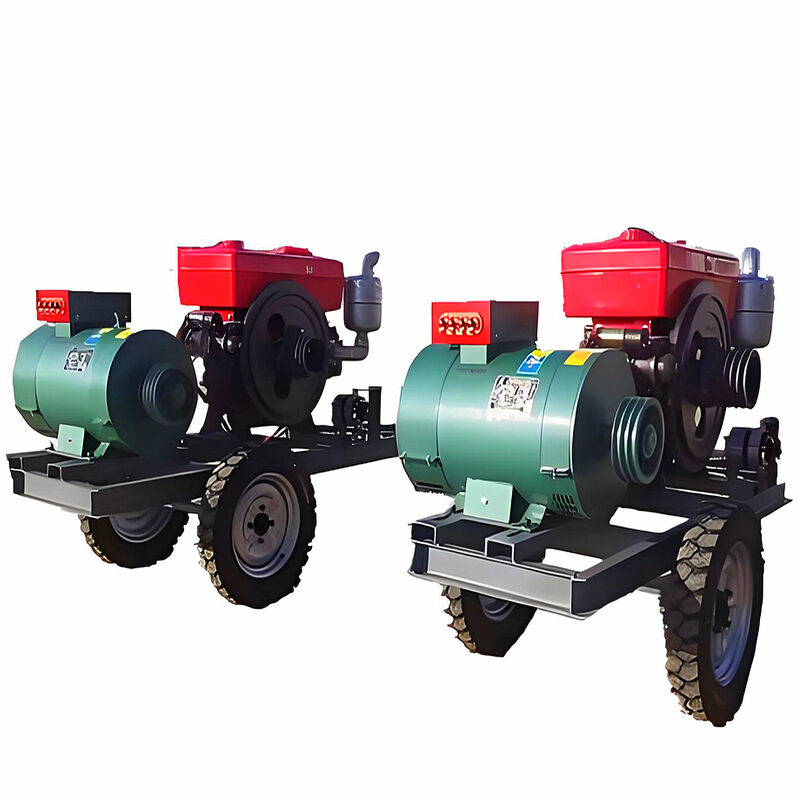

Two-Wheel Trailer-Mounted 20kW Open-Frame Diesel Generator
Engineered for optimal mobility and rapid deployment, this two-wheel trailer-mounted 20kW open-frame diesel generator combines robust power output with exceptional towing convenience. The heavy-duty steel trailer features a balanced axle configuration, leaf spring suspension, and high-grade pneumatic tires, ensuring smooth transport across various terrains while maintaining compact dimensions for enhanced maneuverability.

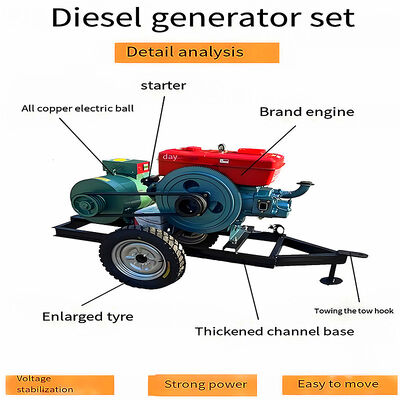

Key Features:
Optimized Towing Design: Balanced weight distribution and a standard tow hitch enable safe pulling behind SUVs, light trucks, or utility vehicles
Rugged Chassis Construction: Reinforced trailer frame with corrosion-resistant coating and integrated stabilizer jacks for secure operation
Enhanced Cooling Efficiency: Open-frame structure allows unimpeded airflow, supporting continuous operation at full load
User-Friendly Operation: Includes integrated control panel with voltage meter, frequency monitor, and safety alarms
Compliance Ready: Equipped with trailer lighting systems (brake/tail lights) for road safety regulation adherence

Hot Sale Diesel Power Generator Two Wheels Trailer Diesel Engine Generator Set Mini Diesel Generator 12

Applicable Industries
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant,
Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company.

Product descriptions from the supplier
100KVA 150KVA 200KVA 300KVA 400KVA 500KVA 700KVA Diesel Genset
"Contact us for specific product details or customized requirements"

Product Description

Technical parameters of diesel generator set
Generator set model:SPDG20KW
Steady state voltage adjustment rate (%):≤± 1
Generator power:20kW/25kVA
Voltage fluctuation rate (%):≤ ± 0.5
Power factor:COSΦ = 0.8 (lagging)
Transient voltage adjustment rate (%):＋20 ～－15
Output voltage:400V/230V
Voltage stabilization time (s):≤1
Generator set current:36A
Steady state frequency adjustment rate (%):≤ ± 1
Rated frequency:50Hz
Frequency fluctuation rate (%):≤ ± 0.5
Rated speed:1500rpm
Transient frequency adjustment rate (%):+ 10 ~ -7
Fuel grade:(standard) 0 # light diesel (normal temperature)
Frequency stabilization time (S):≤3
Diesel generator size:1620*620*1380(L*W*H mm
Diesel generator fuel consumption (100% load):224g/kW·h
Diesel generator weight:600kg
Diesel generator volume(LP7m):95dB(A)
Technical parameters of diesel engine
Cooling method: Closed water-cooling
Oil supply method: direct injection
Engine cylinder number: 4 / L Type
Speed regulation method: Mechanical
Bore stroke: 102*120mm
Intake method: Natural inhalation
Compression ratio: 16.5:1
Overload capacity: 110%
Start method:DC 24V Electric start
Diesel engines Speed: 1500rpm
Technical parameters of generator
Protection level:IP22
Wiring mode:Three-phase four-wire, Y-connection
Generator power: 20kW/25kVA
Adjustment method: AVR (Automatic Voltage Regulator)
Rated voltage: 400V / 230V
Output frequency: 50Hz
Insulation class: H class
Output factor: COSΦ = 0.8 (lag)

Product Name	Diesel generator
Engine	customized
Alternator	customized
Protection	genset shotdown when high water temperature,low oil pressure,shortcuit
Rated Power	20KW,30KW,40KW,50KW,80KW,100KW,200KW,300KW,800KW,1000KW,1200KW,1500KW, 1800KW,2200KW
Cylinder number	3,4,6,8,12cylinders
Cooling System Type	Water Cooling System
Applicable Industries	Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company
Rated Voltage	48V, 110V, 220V, 230V, 240V, 380V, 400V, 415V, 480V
Speed	1500/1800
Frequency	50/60HZ
Diesel Engine	UK, USA, German, Japanese brand engines,4 stroke,water cooled
Alternator model	Stamford/Mecc alte brushless self-excited,IP23,Class H.
Power factor	0.8lagging
Noise level dB(a)	65-95/1m
Excitation	self-excitation
Phase Number and connection	3-phase 4-wire system
Dimension of set (mm)	*14857001000mm~730024402800mm*

Customizable Options: SANROCK POWER Machinery Co., Ltd., offers various customization options for their products, including different genset power and frequency settings. This flexibility allows users to select the most appropriate equipment for their specific requirements, ensuring optimal performance and energy efficiency.

SANROCK POWER Machinery is committed to offering competitive prices without compromising on quality. Their products come with a 3-year warranty period, which provides customers with the assurance and peace of mind necessary to confidently purchase and utilize their generators.

Hot Sale Diesel Power Generator Two Wheels Trailer Diesel Engine Generator Set Mini Diesel Generator 13

Hot Sale Diesel Power Generator Two Wheels Trailer Diesel Engine Generator Set Mini Diesel Generator 14

Hot Sale Diesel Power Generator Two Wheels Trailer Diesel Engine Generator Set Mini Diesel Generator 15

Hot Sale Diesel Power Generator Two Wheels Trailer Diesel Engine Generator Set Mini Diesel Generator 16

Hot Sale Diesel Power Generator Two Wheels Trailer Diesel Engine Generator Set Mini Diesel Generator 17

Hot Sale Diesel Power Generator Two Wheels Trailer Diesel Engine Generator Set Mini Diesel Generator 18

Hot Sale Diesel Power Generator Two Wheels Trailer Diesel Engine Generator Set Mini Diesel Generator 19

Hot Sale Diesel Power Generator Two Wheels Trailer Diesel Engine Generator Set Mini Diesel Generator 20

Hot Sale Diesel Power Generator Two Wheels Trailer Diesel Engine Generator Set Mini Diesel Generator 21

Hot Sale Diesel Power Generator Two Wheels Trailer Diesel Engine Generator Set Mini Diesel Generator 22

Hot Sale Diesel Power Generator Two Wheels Trailer Diesel Engine Generator Set Mini Diesel Generator 23

Hot Sale Diesel Power Generator Two Wheels Trailer Diesel Engine Generator Set Mini Diesel Generator 24

Hot Sale Diesel Power Generator Two Wheels Trailer Diesel Engine Generator Set Mini Diesel Generator 25

Hot Sale Diesel Power Generator Two Wheels Trailer Diesel Engine Generator Set Mini Diesel Generator 26

Hot Sale Diesel Power Generator Two Wheels Trailer Diesel Engine Generator Set Mini Diesel Generator 27

Hot Sale Diesel Power Generator Two Wheels Trailer Diesel Engine Generator Set Mini Diesel Generator 28

Hot Sale Diesel Power Generator Two Wheels Trailer Diesel Engine Generator Set Mini Diesel Generator 29

FAQ
1. how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;

2.what can you buy from us?
Screw Air Compressor,Reefer Container Generator,Diesel Generator,Light Tower,Sewage Pump,Centrifugal Pump,Fire Pump System,Mobile Pump Truck

3. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,Western Union,Cash;
Language Spoken:English,Chinese,Spanish
